Why Integrated Underlayment Matters More Than You're Told

why the attached pad on the back of vinyl plank flooring is more important than you know

Here's a number that surprises most homeowners: underlayment thicker than 3mm to 4mm can actually cause click-lock joints to fail, according to flooring engineers. Meanwhile everybody's still asking us how many millimeters thick their planks should be. Why integrated underlayment matters more than the plank thickness comes down to one simple fact: the plank is just the top layer you walk on, but the underlayment decides whether that floor stays quiet, dry, and locked together for the next fifteen years.

We've sold discount flooring out of the Cook family warehouse for over 50 years, and we can tell you this much: customers obsess over thickness numbers printed on a box, but they rarely ask what's underneath the wear layer. That's a mistake, and it's an expensive one.

Key Takeaways

Question Short Answer
Does thicker plank flooring perform better than thin plank with good underlayment? Not automatically. A 12mm plank on cheap padding can still sound hollow and trap moisture.
What does integrated underlayment actually do? An attached pad can cushion foot traffic and help reduce impact sound. Check the manufacturer’s installation instructions for any separate vapor-barrier requirement; an attached pad is not automatically a vapor barrier.
Do I still need a vapor barrier for vinyl flooring over concrete? Yes, especially on grade-level slabs. Integrated pads help, but a separate poly vapor barrier is still smart insurance.
Is foam underlayment for hardwood the same as vinyl underlayment? No. Solid hardwood flooring generally needs a felt or rosin paper moisture barrier, not foam, since it's nailed down.
Does underlayment for vinyl plank flooring affect the price? Yes, integrated underlayment products cost a little more per box but save you money on install labor and padding.
Can I skip underlayment on a plywood subfloor? Some click-lock products allow it, but skipping it kills sound insulation and comfort underfoot.
Is cheap flooring with underlayment built in worth the extra cost? In almost every case, yes. It's cheaper than buying padding and flooring separately at a big-box store.

What Integrated Underlayment Actually Is, and Why It Beats Chasing Millimeters

Integrated underlayment is the foam or cork pad bonded straight to the back of the plank at the factory. You don't lay it separately. It's already there.

This matters because most people shopping for flooring get hung up comparing an 8mm plank to a 12mm plank like it's the only spec that counts. It isn't.

A thick plank with no underlayment, or a thin, cheap foam pad glued on as an afterthought, will still sound like you're walking on a drum. A thinner plank with a properly engineered attached pad will feel and sound better every single time. That's the whole reason why integrated underlayment matters more than the plank thickness when you're actually living on the floor day to day, not just admiring it in a showroom.

Why Integrated Underlayment Matters More Once the Subfloor Gets Involved

Your flooring subfloor is never perfectly flat. Never. Old plywood has humps, seams, and the occasional squeak that's been there since the Reagan administration.

A good attached pad flexes just enough to bridge those tiny imperfections without telegraphing them through to the surface. A plank that's just thick and rigid, with no cushioning layer, will show every flaw in the subfloor and it will show it loudly.

We tell customers all the time: don't buy the extra millimeter, buy the better pad. That single decision has more to do with how your floor feels five years from now than anything printed in bold on the box.

The Moisture Barrier Question: Vapor Barrier for Vinyl Flooring vs. Foam Underlayment for Hardwood

Vinyl and hardwood need completely different moisture strategies, and this is where a lot of regular folks get burned.



For vinyl plank installed over concrete, check the manufacturer’s moisture-testing and vapor-barrier requirements. Fresh Start Carriage Brown has a 20 mil wear layer, a 6.5 mm overall thickness, and a 1.5 mm attached EVA pad. The attached pad does not by itself establish that the assembly meets the moisture requirements for your slab.



For solid hardwood, like our Kennedale Strip Natural 2.25" 1st Quality, you're not looking for foam. You want felt paper or a rosin barrier under a nail-down install. Foam underlayment for hardwood doesn't apply the same way it does for a floating vinyl or laminate floor, and mixing up the two is one of the most common install mistakes we see.

Sound Insulation: How Underlayment Works on the IIC Scale

If you've ever lived under someone with a "clip-clop" floor, you already understand Impact Insulation Class ratings whether you knew the term or not.

Standard 3mm foam underlayment typically rates 45 to 52 on the IIC scale. Cork underlayment at 3mm to 6mm can push that range up to 52 to 58. Buildings generally consider anything above 50 to be good residential sound performance, and that number moves far more from padding choice than from adding a couple extra millimeters of plank on top.

Logo
Did You Know?
An IIC rating of 50 or higher is considered good residential performance, and integrated underlayment gets you there far faster than adding thickness to the plank itself.

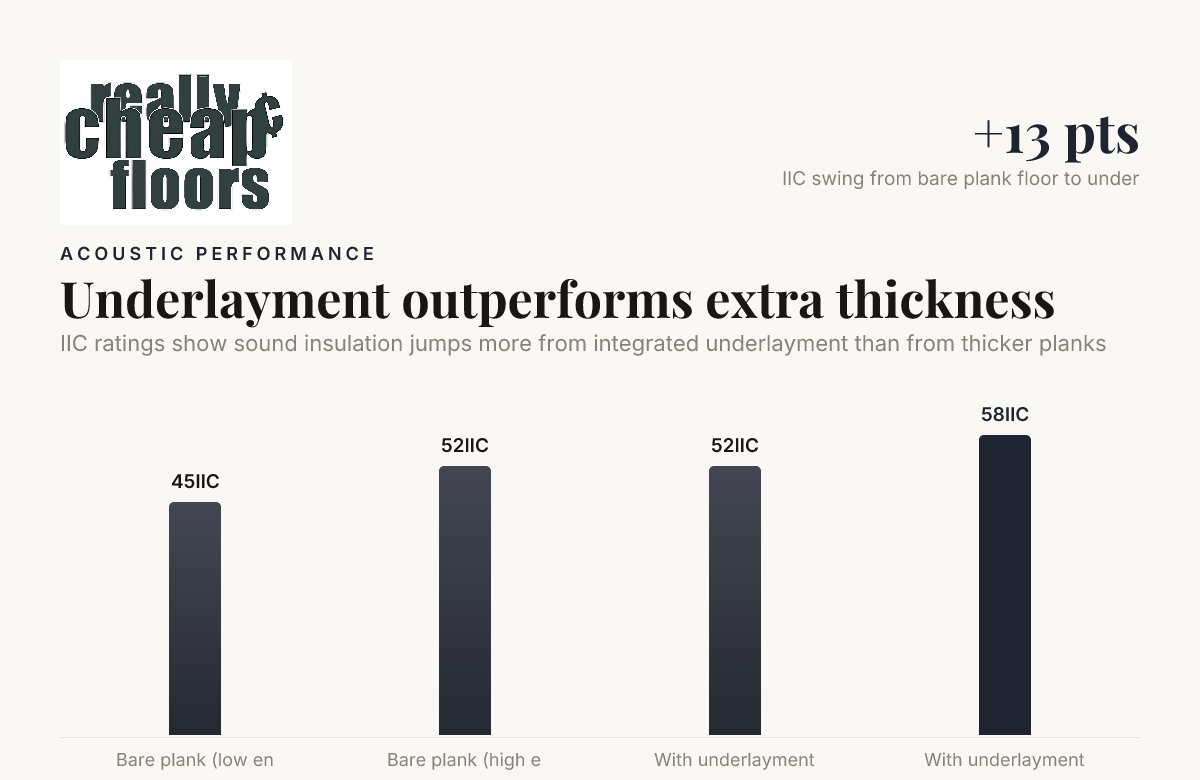

Underlayment outperforms extra thickness — data from Leicester Flooring & Carpet

IIC ratings show sound insulation jumps more from integrated underlayment than from thicker planks

Vinyl Plank Flooring: Where We See the Underlayment Debate Play Out Daily

Resilient flooring, meaning vinyl and rigid-core products, has grown its market share by 200% over the last five years. WPC and rigid core alone now make up 56.2% of residential resilient sales.

That growth exists because people want a floor that survives muddy dog paws, dropped laundry baskets, and general "life happens" chaos without falling apart. A plank with an attached underlayment pad handles that abuse better than a bare plank laid over a separate roll of foam that shifts and bunches during install.

Fresh Start Carriage Brown Luxury vinyl plank — 20 mil wear layer flooring

Fresh Start — Carriage Brown

Luxury vinyl plank — 20 mil wear layer

Width
9 inches
Color
Carriage Brown
Grade
1st Quality
Price per square foot
$2.99 / sq. ft.

Price checked October 19, 2026. See the product page for current pricing and availability.

Rylan's Cove Torch flooring in Torch

Rylan's Cove Torch

Luxury vinyl plank

Width: 7 inches

Color: Torch

Grade: 1st Quality

$2.79 per sq ft

11,538.45 sq ft available.

20 mil wear layer; 7 mm overall thickness includes a 1.5 mm attached EVA pad. Float/glue installation. Torch is a warm brown wood-look plank, differing from gray stone-look tile.

Price and availability checked November 17, 2026. Both can change; confirm before ordering.



Rylan's Cove Torch is a 7-inch wood-look luxury vinyl plank with a 20 mil wear layer. Its 7 mm overall thickness includes a 1.5 mm attached EVA pad. This warm brown plank differs from gray stone-look tile. Follow its installation instructions for subfloor preparation, moisture control and any additional underlayment. For a cost comparison with other budget flooring types, our carpet vs. vinyl plank cost comparison for 2026 lays it out plainly.



Hardwood and Engineered Planks: Grade Matters as Much as Underlayment

Engineered hardwood plays by different rules than vinyl, but the same principle holds. Why integrated underlayment matters more than the plank thickness doesn't stop being true just because the plank is real wood veneer instead of vinyl.



Antique Sable 5-inch Builder A is an 8-ply engineered oak floor with a 3 mm wear layer, wirebrushed texture and low-gloss finish, priced at $2.49 per square foot when checked November 17, 2026. The darker Sable color differs from Cherry Oak. Choose the installation method and any underlayment according to the exact product instructions.



Antique Sable 5-inch flooring in Sable

Antique Sable 5-inch

Engineered hardwood; Oak

Width: 5 inches

Color: Sable

Grade: Builder A

$2.49 per sq ft

7,240.00 sq ft available.

3 mm wear layer; 8-ply cross-grain core; wirebrushed low-gloss surface. Sable is a different, darker color than Cherry Oak.

Price and availability checked November 17, 2026. Both can change; confirm before ordering.

Oak Plank Red Oak Natural flooring in Red Oak Natural

Oak Plank Red Oak Natural

Engineered hardwood; Red Oak

Width: 5 inches

Color: Red Oak Natural

Grade: Builder A

$2.49 per sq ft

15,160.00 sq ft available.

3 mm wear layer; 8-ply cross-grain core; smooth semi-gloss surface. This is red oak in Builder A grade, rather than white oak in Blue Label grade.

Price and availability checked November 17, 2026. Both can change; confirm before ordering.

Antique Urban Gray Builder A engineered hardwood

Our Oak Plank Red Oak Natural 5-inch Builder A (pictured above) and the Antique Urban Gray 5" Builder A both carry that same 8-ply cross-grain build. Whether you go click-lock or glue-down changes what underlayment you need entirely, and we break that whole decision down in our glue-down vs. click-lock guide.

Floor Underlayment Plywood and Subfloor Prep: Don't Skip This Step

Nobody gets excited about subfloor prep. We get it. It's not the fun part of a renovation.

But floor underlayment plywood, when it's needed, has to be flat, dry, and properly fastened before anything else happens. Gluing engineered hardwood straight to a poorly prepped concrete subfloor is asking for trouble down the road, no matter how thick the plank on top happens to be.

Living on a mirror-flat floor isn't practical, and in 2026, it isn't the goal either. The goal is a floor that stays put, stays quiet, and doesn't telegraph every flaw underneath it.

If you're gluing down engineered hardwood, spend the extra ten minutes making sure that subfloor is ready. It matters more than upgrading from a 5mm wear layer to a 7mm one.

The Discount Flooring Trap: Why Thicker Isn't Always Cheaper or Better

Here's where we get blunt, because that's how we do business. Big-box stores love to sell you on thickness because it's an easy number to print on a sticker. "12mm! Extra durable!" It sounds impressive.

Meanwhile the actual sound insulation, the moisture barrier for vinyl flooring, and the comfort underfoot all come from the underlayment, not the extra millimeter. You're paying big-box markups for a spec that barely moves the needle on real-world performance.

Did You Know?
The average price for resilient flooring now sits at $1.19 a square foot, nearly double what it cost back in 2006, as more of that cost goes into better integrated underlayment rather than a thicker plank.

Wondering what a full replacement actually runs these days? We break the real numbers down in how much it costs to replace vinyl flooring, and it's a lot less "big-box markup" once you understand which specs actually matter.

Cabin Grade, Blue Label, and Getting Killer Value Without Big-Box Markups

Remember, cheap flooring is our middle name, and this guide is meant to show you how to get killer value without paying for specs that don't do much.



We carry several discounted grades, so check the grade of the exact product rather than treating the names as interchangeable. Antique S Urban Gray 3.25-inch Utility is a solid oak option at $1.69 per square foot. Utility grade can include more character and require additional sorting and waste allowance; review the grade description before ordering.

Antique S Urban Gray Prefinished solid hardwood flooring

Antique S — Urban Gray

Prefinished solid hardwood

Width
3.25 inches
Color
Urban Gray
Grade
Utility
Price per square foot
$1.69 / sq. ft.

Price checked October 19, 2026. See the product page for current pricing and availability.

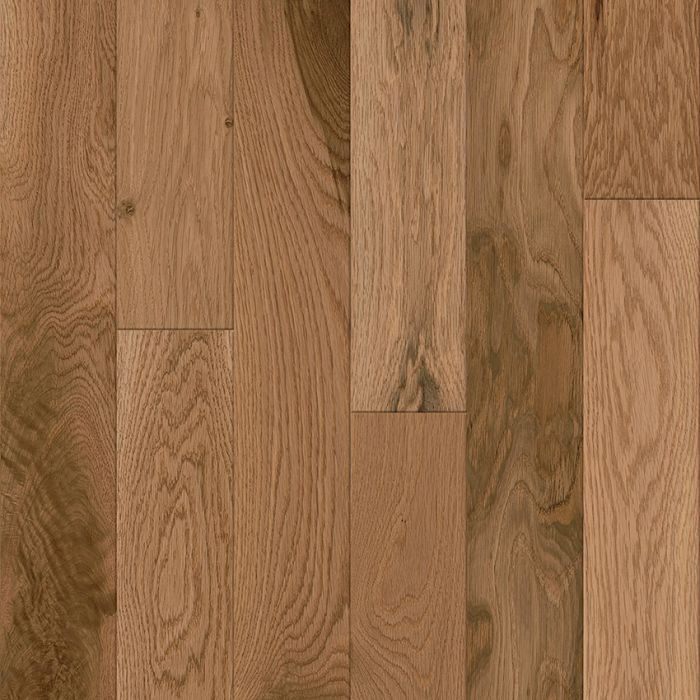

Dundee Plank LG Natural prefinished solid hardwood Kennedale Strip Natural prefinished solid hardwood

The Dundee Plank LG Natural 5" 1st Quality and the Kennedale Strip Natural 2.25" 1st Quality are both nail-down solid hardwood, meaning your moisture barrier for hardwood floors comes from felt paper, not foam. Whichever product you land on, ask about the underlayment for hardwood floors before you ask about the wear layer thickness. That question tells you more about how the floor will actually hold up.

Conclusion

Plank thickness is the number that's easy to compare on a box. Underlayment is the number nobody prints, and it's the one that decides whether your floor sounds hollow, traps moisture, or feels comfortable under bare feet five years from now.

That's why integrated underlayment matters more than the plank thickness for any regular folks shopping on a real budget, not just a showroom fantasy. Whether you're buying vinyl, engineered hardwood, or solid strip flooring, ask about the pad before you ask about the millimeters.

And if you want killer value without the big-box markups, that's the whole reason Really Cheap Floors exists.

Frequently Asked Questions

Why does integrated underlayment matter more in 2026?

Because sound insulation, moisture protection, and comfort underfoot come primarily from the underlayment layer, not from an extra millimeter of plank. A thinner plank with quality attached underlayment will outperform a thick plank with cheap or no padding.

Do I need a separate vapor barrier for vinyl flooring if the plank already has integrated underlayment?

On concrete slabs, yes. Integrated underlayment helps with sound and comfort, but a dedicated vapor barrier for vinyl flooring still protects against moisture rising up through the subfloor.

Is foam underlayment for hardwood the same product used under vinyl plank?

No. Foam underlayment is typically used for floating vinyl or laminate installs. Nail-down solid hardwood generally relies on felt paper or rosin paper as its moisture barrier instead.

What IIC rating should I look for in flooring underlayment?

Aim for an IIC rating of 50 or higher for good residential sound performance. Standard foam underlayment lands around 45 to 52, while cork can reach 52 to 58.

Does floor underlayment over plywood matter if I'm installing vinyl plank flooring?

Yes. Even waterproof vinyl plank needs a flat, properly prepped subfloor underneath. Skipping proper floor underlayment plywood prep can cause hollow spots and premature wear no matter how good the plank itself is.

Is buying Cabin Grade or Blue Label flooring worth it if the underlayment matters more than thickness?

Absolutely. Cabin Grade and Blue Label products use the identical core construction and underlayment as 1st Quality boards, just with more cosmetic character and a lower price tag.

What's the difference between glue-down and click-lock when it comes to underlayment needs?

Glue-down engineered hardwood doesn't use a separate underlayment pad since it bonds directly to the subfloor, while click-lock floating floors rely heavily on either integrated or separately installed underlayment for sound and moisture control.
